PHIX COMPACT - PH AND REDOX MEASUREMENT

THIS UNIQUE DESIGN ELIMINATES ANY KNOWN PROBLEMS WITH HIGH IMPEDANCE ELECTRODES AND, FURTHERMORE, NO SPECIAL TOOLS ARE REQUIRED FOR INSTALLATION. ALSO, DUE TO THEIR LARGE REFERENCE JUNCTION, PHIX ELECTRODES ARE LESS SENSITIVE TO POLLUTING ELEMENTS.

MJK analysis instruments provide knowledge of oxygen content, dry matter, turbidity, pH and redox for water supplies, treatment plants, aquaculture - and increasingly through environmental monitoring. Many processes rely on pH and redox measurements, including - in particular - treatment of wastewater, in industrial processes and in aquaculture. pH measurement is used, among other things, to control neutralization, precipitation and other chemical processes.

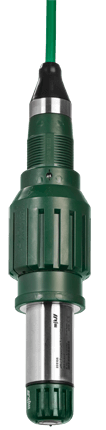

MJK pHix Compact is an innovative pH meter and redox transmitter that can be immersed in liquids in channels and tanks for accurate measurements. When measuring in pipes, it is possible to mount the pHix Compact in a 2”pipe socket. pHix Compact is IP68 secured and can therefore withstand up to 1 bar/10 mWG pressure and full immersion.

Our product range within analysis measurements is modern and competitive. Thus, it can be used individually or connected to other meters and controls within MJK's network solution.

Contact MJK
  • Tick
    Compact Design

    pHix Compact efficiently combines electrode, fitting and amplifier in one unit, eliminating the need for sensitive cable connections.

  • Tick
    OUTPUT SIGNAL

    pHix Compact delivers a 4-20mA output signal.

  • Tick
    EASY MAINTENANCE

    Calibration of electrodes takes place via a guide sequence, which is started using the switch. The switch is built into the handle or a “tilt switch”.

  • Tick
    Integration

    Power is supplied directly from PLC (active input 12-30VDC)

  • Tick
    WIDE RANGE OF ACCESSORIES

    To make your everyday life a little easier, we have designed a wide range of accessories for pHix Compact.

  • Tick
    PLUG’N’PLAY

    Easy installation, assembly and setup.

The pHix Compact is unique and revolutionary compared to standard pH meters. Regardless of user skills, it is easy to install, assemble and use in everyday life. pHix Compact is your guarantee to always get reliable measurements of incoming wastewater. This way, you are able to protect organic processes in the wastewater system against too high pH values.

The pHix Compact is used for measuring and monitoring pH values ​​from water borings, wells and other parts of drinking water production. Sensor calibration is very easily accessible and performed via a guided process. You can easily replace the electrode - it's done in 1-2 minutes! The compact transmitter securely delivers the measured data in 4-20 mA signals.

When creating the perfect conditions for fish, measuring pH values ​​is an indispensable parameter. In the wastewater and drinking water industry worldwide, pHix Compact has been used successfully for years. Maintenance and calibration can be performed easily and quickly. The signal from pHix Compact is 4-20 mA, and can easily be included in an assessment of whether acid/base adjustments are due in the tank.

REVOLUTIONARY PH METER

pH measurements made by online insitu sensors provide real-time data for, for example, the pH value in a tank or a basin.

All organic processes are sensitive to the pH balance - from the smallest microbes in sewage systems to exotic fish in ponds, nature etc.

pHix Compact provides an easy and intuitive work process as well as stable and credible measurements - every time.

TEMPERATURE MEASUREMENTS IN DRINKING WATER FACILITIES

At a waterworks, online pH measurement is used to control and regulate the pH value of the incoming raw water, as well as to ensure the pH and temperature of the outgoing drinking water.

MEASUREMENT OF PH AND REDOX

At wastewater treatment plants, ​​in relation to microbiology, the biological process is sensitive to, among other things, pH values.

The pHix Compact measures and gives a warning if the pH value rises or falls beyond the accepted level.

MJK PHIX COMPACT FEATURES

COMPACT DESIGN

Accordion control

pHix Compact efficiently comprises electrode, fitting and amplifier in one unit, eliminating the need for sensitive cable connections.

SAFE IMMERSION

Accordion control

The 4-20 mA fitting and electrode are IP68 secured, which is why they can withstand an external pressure of 1 bar corresponding to immersion to a depth of 10 meters.

NO PLUGS OR CABLES FROM ELECTRODE TO FITTING

Accordion control

The unique design makes fitting and cable connections superfluous. The pHix Compact therefore has no problems with moisture or electrical noise.

LARGE REFERENCE JUNCTION

Accordion control

In order to avoid incorrect measurements, MJK pHix Compact is protected against electrode overgrowth.

VERY ROBUST

Accordion control

To be able to deliver stable measurements over a long period, pHix Compact is designed specifically for the wastewater industry.

ROBUST CABINET

Accordion control

Produced in chemical resistant RYTON (PPS) and/or stainless steel.

ELECTRODE DESIGN

Accordion control

The special design provides lower impedance, larger electrolyte volume and greater junction. All this ensures a longer life for the electrode.

BUFFER CALIBRATION

Accordion control

Calibration on-site via "switch" can be done by turning the built-in switch on on the fitting. When pHix Compact is turned, on-site calibration "Tilt & Dip" is activated with the built-in tilt switch.

One-year warranty



FOR YOUR CONVIENCE ALL

MJK PRODUCTS HAVE

A 1 YEAR WARRANTY PERIOD.







Specifications

Supply:
2-wire supply, 12 - 30 V DC
Material:
FORTRON® (PPS) and/or stainless steel
Input, pH and mV:
0 -14 pH / - 1000 … + 1000 mV
Accuracy:
± 0,1 pH / 1 mV
